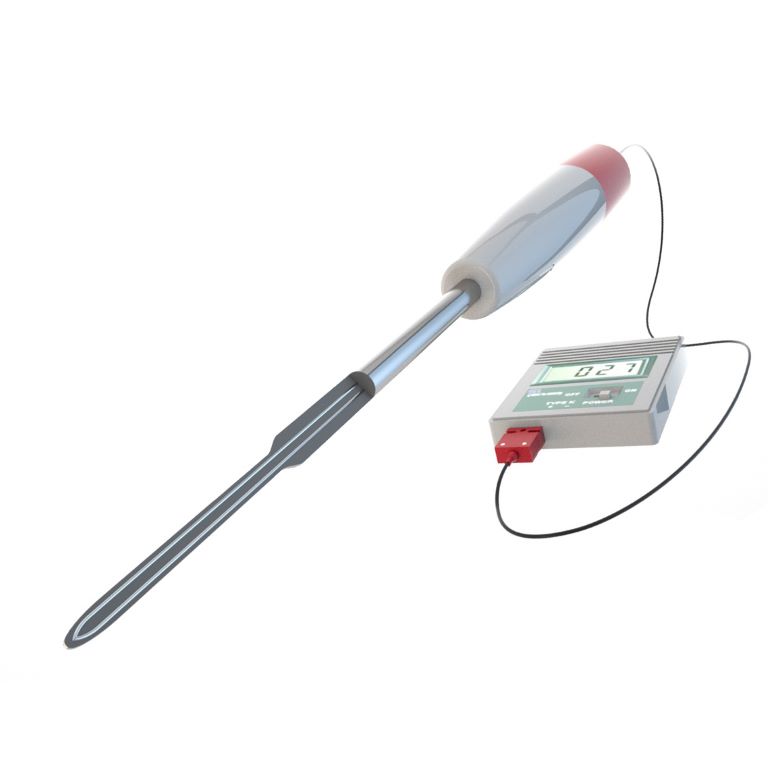

Thermocouple materials include wires, strips, and protective tubes that can be used at temperatures up to 1260°C (2300°F). For many industrial heating processes, especially those at high temperatures, the most accurate, convenient, and simplest method of temperature measurement is using thermocouples.
The gap between each arm and the platinum is calibrated, and the EMF value is printed on the coil or spool.
Our thermocouple product line includes:
Our product range includes dual-wire parallel structures within a specific size range.
| code | +Positive lead | – Negative lead |
|---|---|---|
| N | Nicrosil (NP) | Nisil (NN) |
| K | Thermothal®KP | Thermothal® N (KN) |
| K | Thermothal®KM | Thermothal® N (KN) |
| E | Thermothal® P (EP) | Cuprothal® ( EN) |
| J | Iron (JP) | Cuprothal® ( JN) |
| T | copper* | Cuprothal® ( TN) |
*Not manufactured by Sandvik
Wire: Kanthal® thermocouple wires are available in sizes from 0.05 to 8.0 mm (0.0019 to 0.315 inches). Thermocouple wires in the size range of 0.0254 to 0.51 mm (0.001 to 0.0201 inches) are available with or without insulation coating.
Thermocouple tape: The standard dimensions for thermocouple tape are 0.10 to 3.0 mm (0.0039 to 0.181 inches) in thickness and 4 to 195 mm (0.157 to 7.68 inches) in width.
Kanthal® thermocouple alloys are supplied according to the standards shown below. If an older standard is still in use (which is not equivalent to the standard listed below), we can provide different EMF values upon request.
| ASTM | (American Society for Testing and Materials) E 230 |
|---|---|
| ANSI | (American National Standards Institute) MC 96.1 |
| IEC | (International Electrotechnical Commission 584 European Standard) – 1/2/3 |
| DIN | (National Industrial Standard) EN 60584-1/2 |
| BS | (British Standard) 4937.1041, EN 60584 – 1/2 |
| NF | (French Standard) EN 60584 -1/2 – NFC 42323 – NFC 42324 |
| JIS | (Japanese Industrial Standards) C 1602 – C 1610 |
| GOST | (Russian Unified Standard) 3044 |
| thermocouple | Compensating cable | alloy | Temperature range °C (°F) |
|
|---|---|---|---|---|
| K type | WPX WNX (KCA) |
Iron Cuprothal® WX – |
0 to +150 (+32 to 300) – – |
|
| K type | VPX VNX (KCB) |
Copper Cuprothal® VX– |
0 to +100 (+32 to 200) – – |
|
| S-type, R-type* (Pt/PtRh) | Copper SNX (RCA-SCA) (RCB-SCB) |
Copper Cuprothal® SX –– |
– – 0 to +100 (+32 to 200) 0 to +200 (+32 to 400) |
|
*Not included in the Kanthal product line
